PIPESOLV K20
2026 flagship - all-terrain 6WD crawler
All-terrain 6-wheel-drive crawler with dual 5MP front & rear cameras, 360° PTZ inspection and a 100 m intelligent cable reel - up to 6 hours of continuous municipal and industrial pipe inspection.
See the PIPESOLV K20 on the Job.
Live footage from real field conditions — watch the drive, the camera and the picture.
Precision Municipal Inspections, Optimized
The 2026 edition of the PIPESOLV K20 combines a robust dual-motor 6-wheel drive system with 5MP dual-camera clarity, delivering up to 6 hours of continuous inspection across municipal sewer networks, industrial pipelines and rainwater drainage systems.
All-Terrain 6WD Power
The dual-motor driven 6-wheel system clears 100 mm obstacles and climbs 30° inclines, keeping traction across debris, silt and rough sewer inverts.

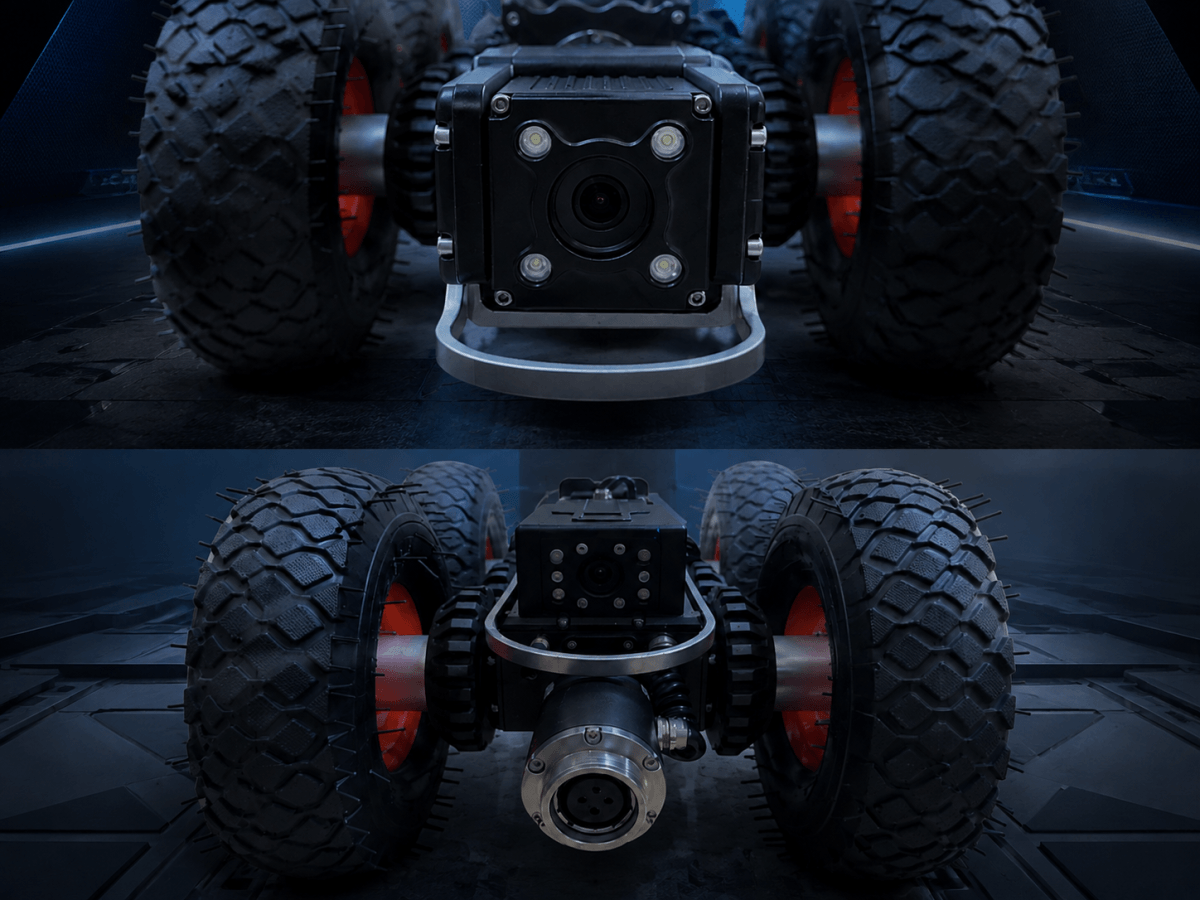

5MP Ultra-HD Dual Vision
A 360° PTZ front camera with a dedicated rear monitoring camera captures microscopic defects, surpassing industry-standard 2MP systems.
Precision Elevating System
An 80° lift angle with up to 178 mm elevation height keeps the lens centred in any pipe diameter.
IP68 Industrial Protection
Stainless steel anti-collision bars and a deep-waterproof design deliver reliability in the harshest pipeline environments.
Making pipeline inspection simpler and smarter.
Working the Line, End to End.
The PIPESOLV K20 through the pipe — drive, camera and control in the real world of sewer and drain inspection.

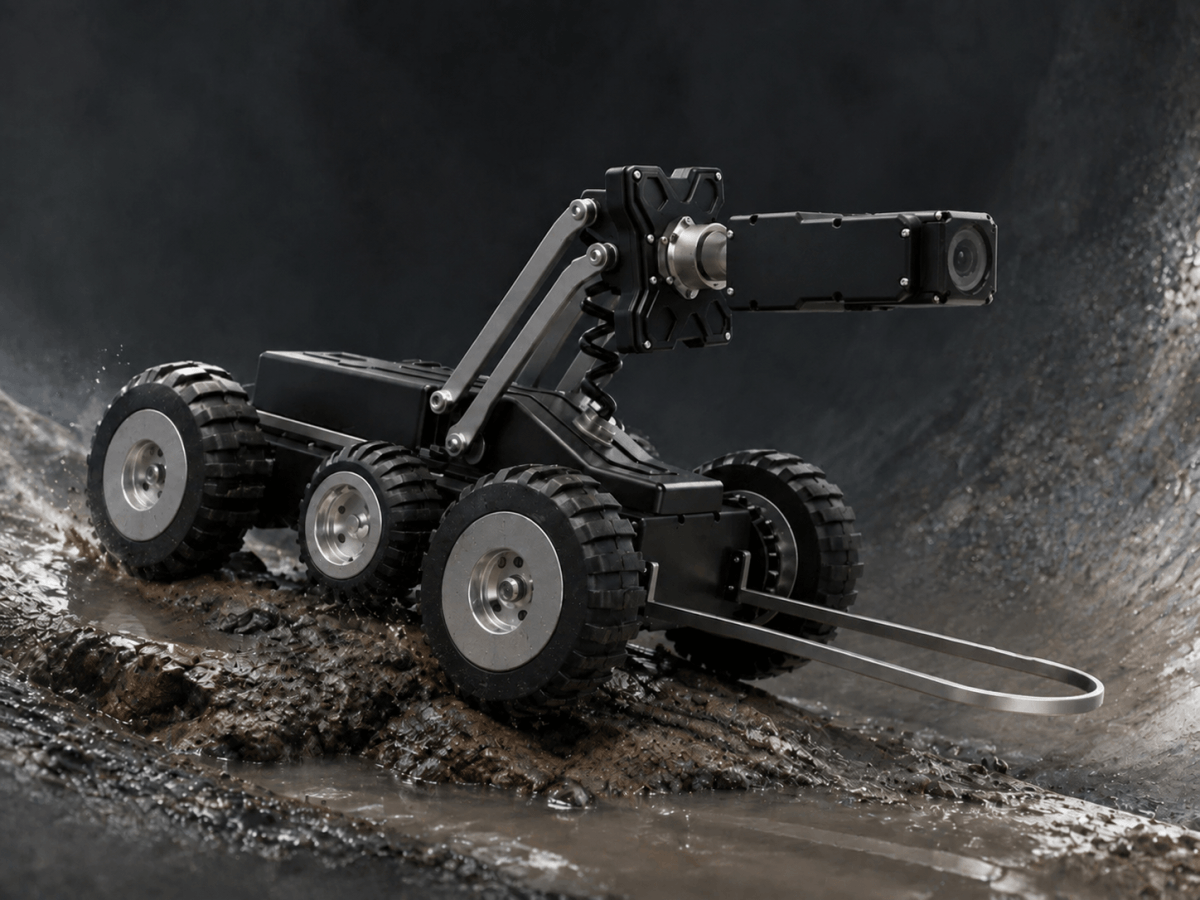

Six-Wheel Grip, Even on the Slickest Invert

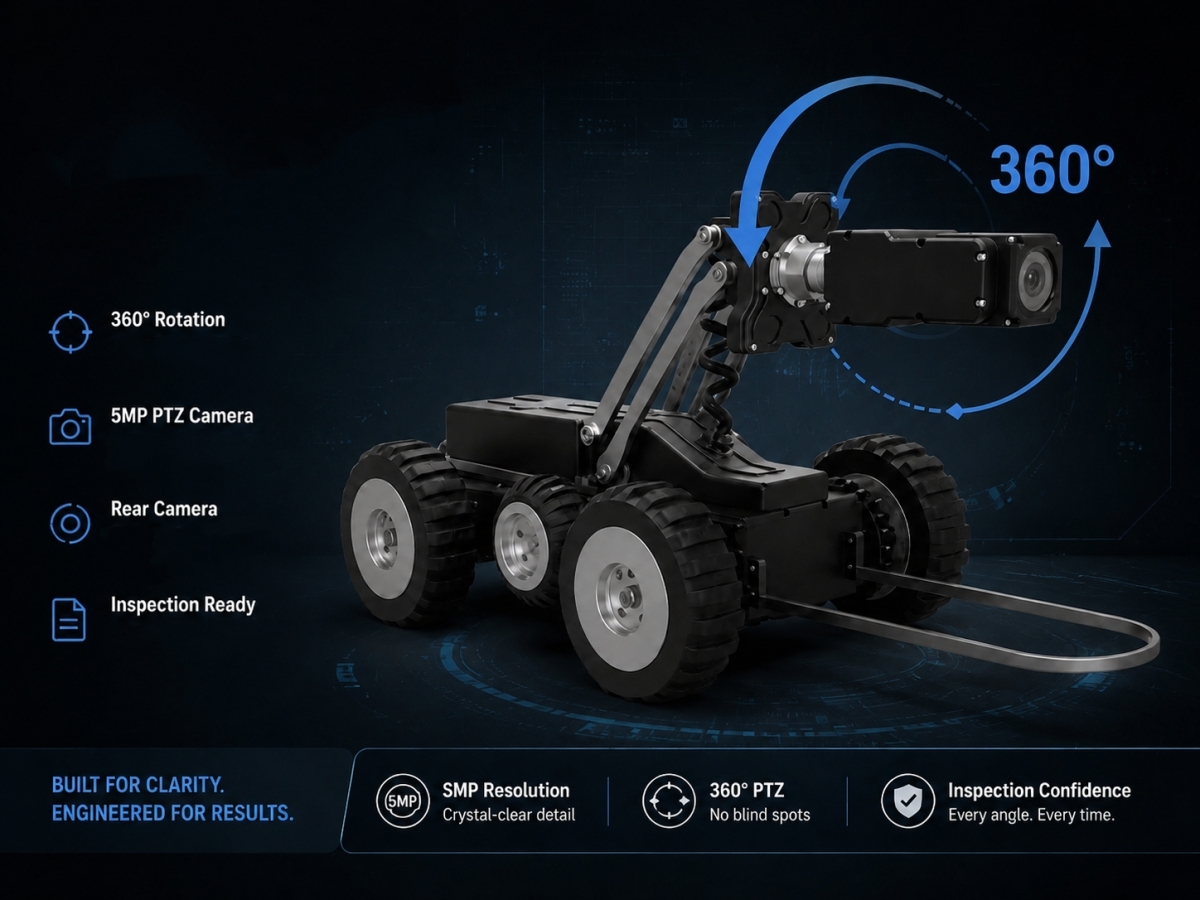

Vision You Can Measure Against

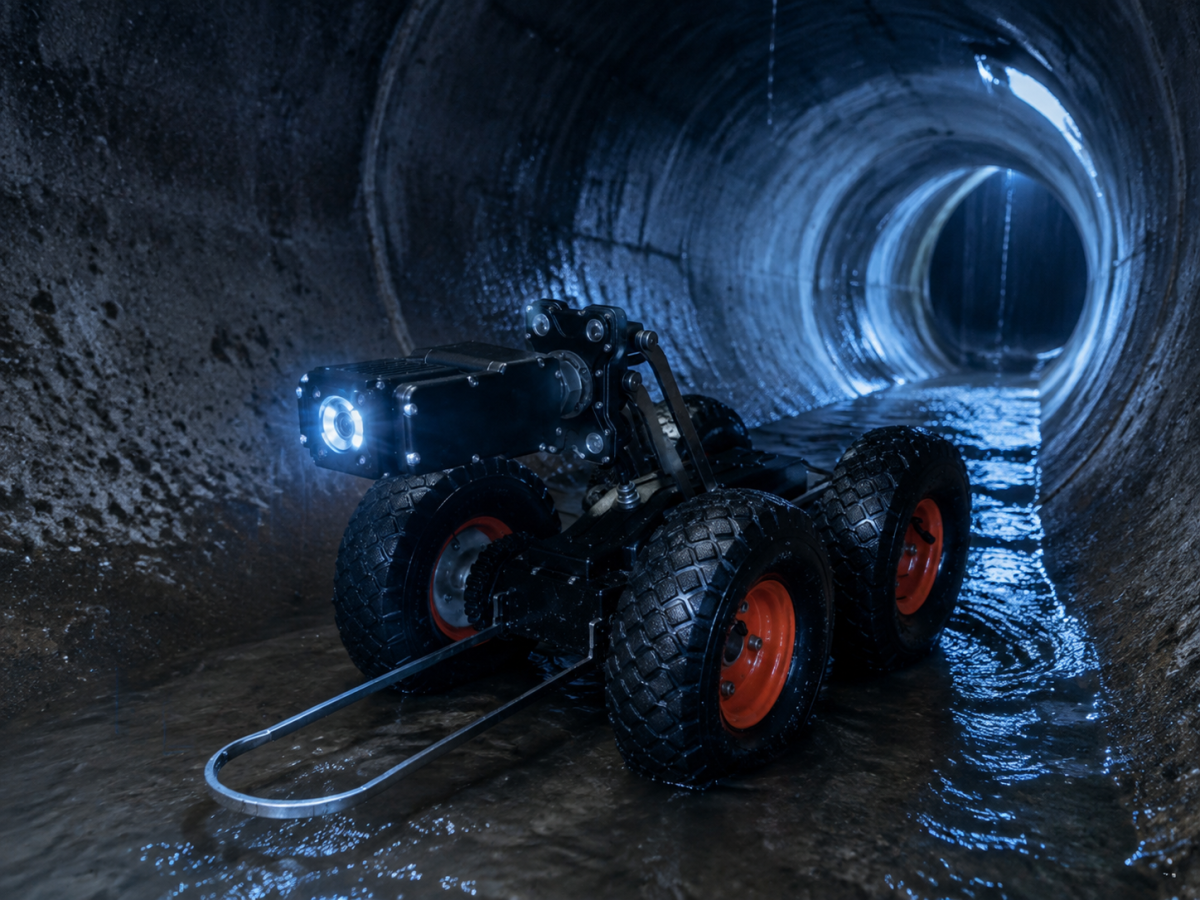

From the Field
Built for the pipes you actually work in.
The PIPESOLV K20 on the invert, at the manhole and under the surface — engineered from real field conditions, not brochures.
Built for the Pipes You Survey.
Four reasons the PIPESOLV K20 earns its place in the main — long reach, live 4K eyes, real climbing grip and a sealed chassis for wet lines.
All-Terrain 6WD Power
Dual-motor 6-wheel drive clears 100 mm obstacles and climbs 30° inclines, keeping traction across debris, silt and rough sewer inverts.
5MP Ultra-HD Dual Vision
A 360° PTZ front camera with a dedicated rear monitoring camera captures microscopic defects, surpassing industry-standard 2MP systems.
Precision Elevating System
An 80° lift angle with up to 178 mm elevation height keeps the lens centred in any pipe diameter.

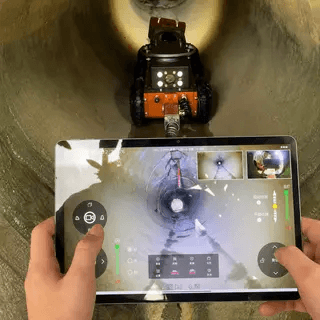

Intelligent Control Terminal
Huawei tablet with one-touch auto-reset, real-time video and one-click report generation.
IP68 Industrial Protection
Stainless steel anti-collision bars and a deep-waterproof design deliver reliability in the harshest pipeline environments.
One-Click Report Generation
Project info, operator and pipe ID overlaid on a complete inspection report in one click.
The Numbers That Matter.
Every specification is validated against real sewer and water-main conditions — reach, speed, grade and cable sized for utility fieldwork.
| Applicable pipe diameter | DN300 - DN2000 |
| Drive system | Dual-motor 6-Wheel Drive (6WD) |
| Camera resolution | 5MP HD (front & rear) |
| Lens view | 360° horizontal / 180° radial |
| Obstacle crossing | <100 mm obstacles / 30° slope |
| Elevating range | 80° angle / 178 mm height |
| Waterproof rating | IP68 |
| Lighting system | 3W x 12 high-intensity LEDs |
| Cable length | 100 m (200 kg tensile strength) |
| Winding mode | Auto / manual / manual-assist |
| Distance measurement | High-precision electronic encoder |
| Battery life | 60V / 15Ah lithium (about 6 h operation) |
| Material | Aluminum alloy & stainless steel |
| Control terminal | Huawei tablet / 10.4-inch Android touchscreen |
| Transmission | Low-latency wireless HD video |
| Wheel presets | 4-inch / 6-inch / 10-inch quick-change |
| Reporting | One-click, project data overlaid on video |
| Operating temperature | -20°C to +50°C |

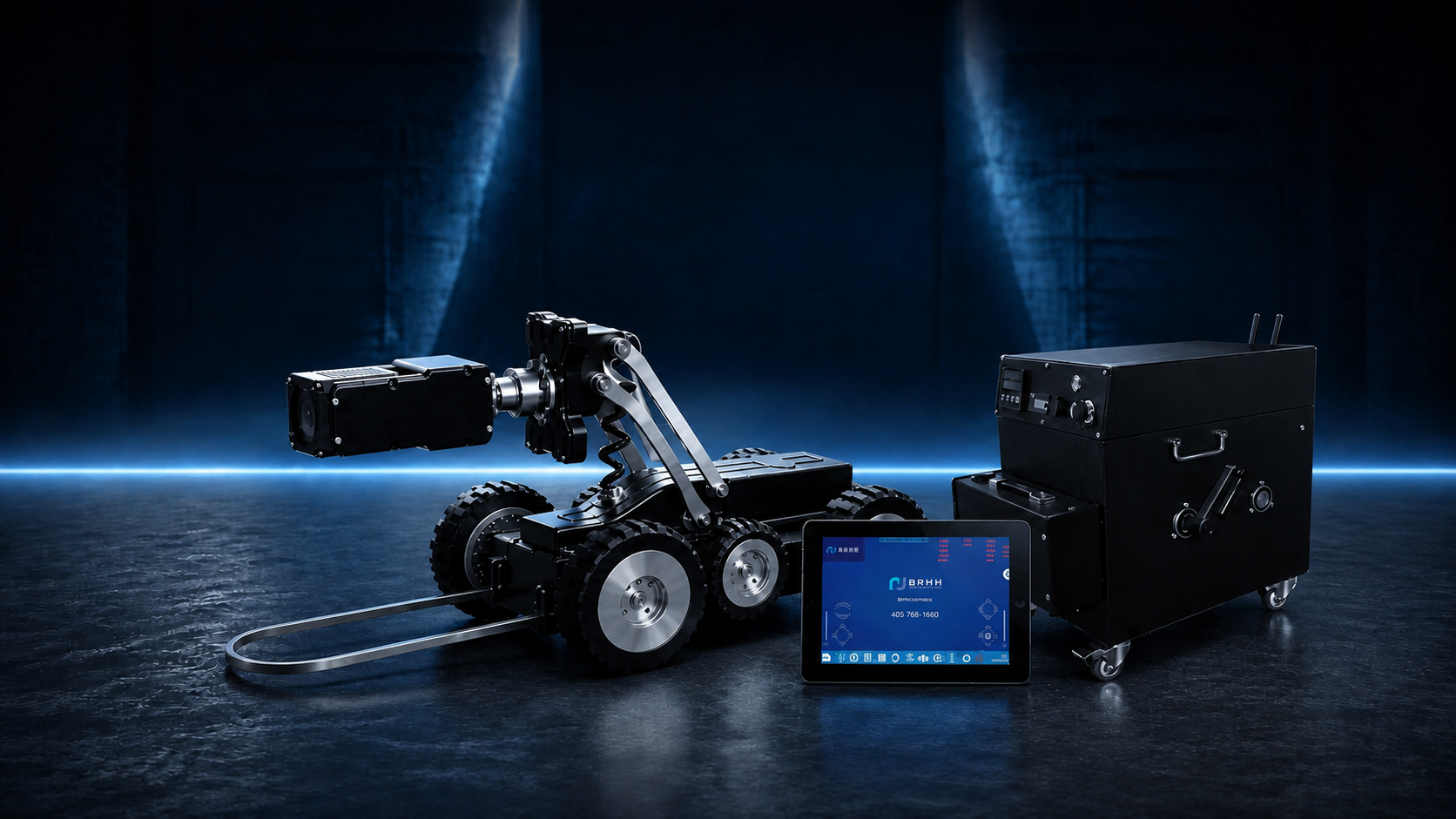

Everything the PIPESOLV K20 Needs to Stay in the Field.
Compatible spares and upgrades to keep the crawler running at full performance — order with the PIPESOLV K20 or later, as wear requires.
Quick-Change Wheel Sets
Three modular wheel sets matched to pipe diameter for optimal traction and clearance.
4-inch / 6-inch / 10-inch
Control Tablet
Huawei intelligent terminal with one-touch auto-reset, encoder counting and on-site reporting.
10.4-inch / Android
Intelligent Cable Reel
Powered drum with slip ring, auto/manual winding and high-precision electronic encoder.
100 m / 200 kg tensile
Camera Lens Kit
Wide-angle and close-up lenses for detailed capture at joints, laterals and defects.
2× lenses / quick-swap
Spare Track Pads
Wearing-part set for abrasive inverts and high-mileage fleets.
4 pads + pins

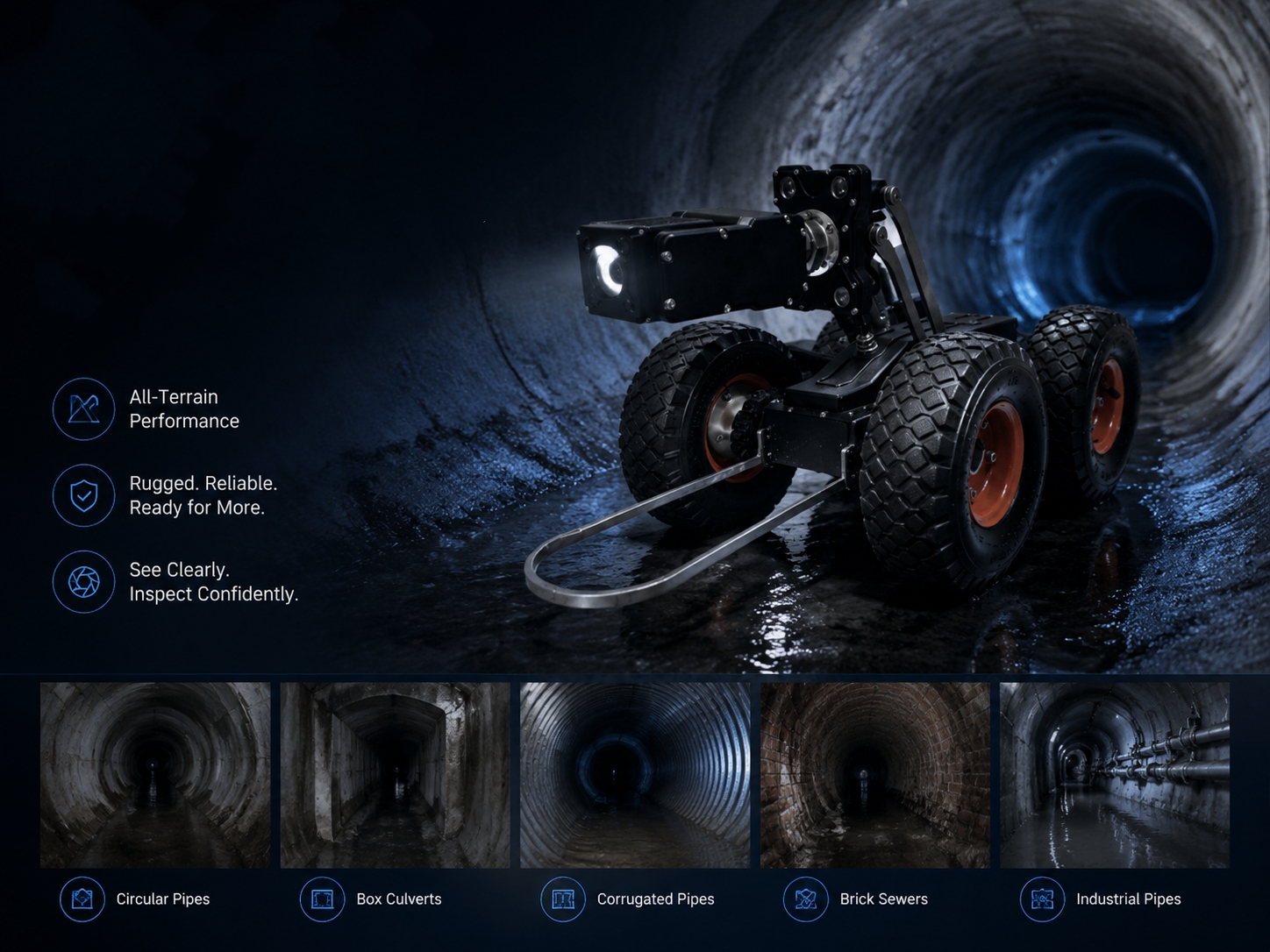

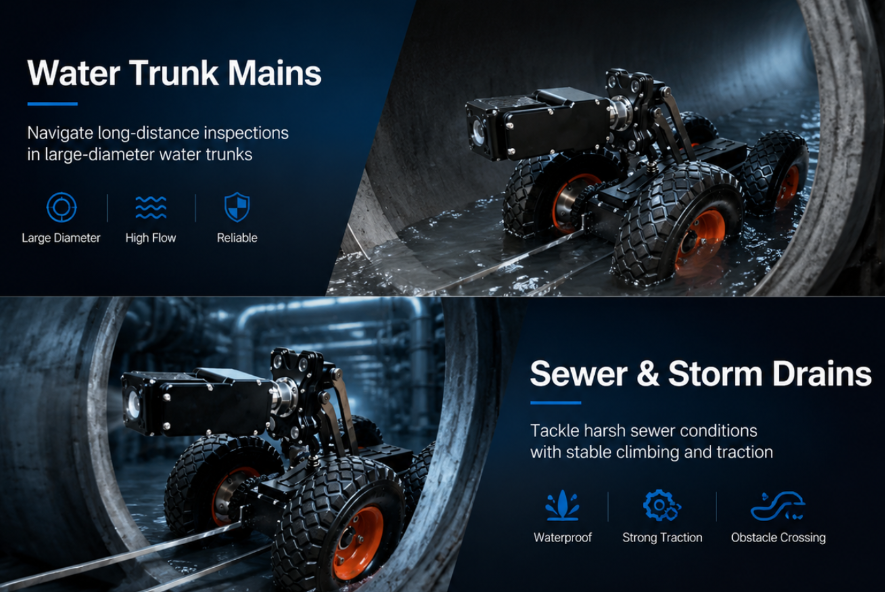

Built for Every Pipe in Your Network.
The PIPESOLV K20 climbs, navigates and inspects across the line types found in municipal and industrial networks.
Questions, Answered.
The questions operators ask most about the PIPESOLV K20 — from line fit to verifying the result.
Can the K20 handle the different pipe diameters we meet every day?
Yes. The K20 is built for maximum versatility - modular design covers DN300 to DN2000 with three included quick-change wheel sets (4-inch, 6-inch and 10-inch). Match the wheel size to the pipe for optimal traction and clearance.
How does the system ensure accurate distance measurement and reporting?
An electronic encoder counter on the reel provides precise distance tracking. A gear-matching system syncs the selected wheel size with the software so distance is always calculated correctly, and project data can be overlaid directly onto the video for audit-ready records.
Is the robot durable in flooded sewers or dusty industrial pipes?
Yes. The crawler is IP68 rated - fully submersible and dust-tight - and operates reliably from -20°C to +50°C. The stainless steel bumper and chassis protect against impacts, and the splash-proof reel cart is built for rugged, wet job sites.
How long can it operate on a single charge?
The high-capacity 60V 15Ah lithium-ion battery provides up to 6 hours of continuous operation. Combined with the standard 100 m cable, this typically covers a full productive day of inspections without recharging.
Does the system simplify report generation?
Yes. Project details are entered before recording and burned directly into the video in real time - the video file itself becomes a complete report, with no separate note-taking or post-processing needed.
What if the robot gets stuck or loses signal deep inside a pipeline?
If connection is lost, never pull the cable. The reel cart has a manual retrieval handle - steadily wind the cable back to safely recover the robot without damaging equipment.
