PIPESOLV K22-C
Compact crawler for small-diameter lines
Compact six-drive crawler optimized for small-diameter sewers - 360° rotating camera and tablet wireless control inspect DN150 to DN2000 lines without excavation.
Compact Crawler for the Tightest Lines
The PIPESOLV K22-C is the compact member of the series, optimised for small-diameter sewers from DN150 and narrow access points. Same six-wheel dual-motor drive, same 360° camera and tablet control — sized for the lines where space is tightest.
Built Around DN150 Entry
A compact footprint lets the K22-C reach service lines and small-bore sewers that larger crawlers cannot enter, while keeping full 360° inspection quality once inside.
360° Inspection in a Small Package
The rotating camera head with one-touch lift surveys the full pipe circumference from a single position — no repositioning, no blind spots.
Wireless Tablet Control
Drive and record from a high-definition touchscreen at the surface, with live 1080P video and one-click screenshots for defects as they appear.
IP68 Deep-Water Rating
Sealed against water and debris, the K22-C operates reliably in flooded, silty and high-groundwater lines.
Making pipeline inspection simpler and smarter.
Working the Line, End to End.
The PIPESOLV K22-C through the pipe — drive, camera and control in the real world of sewer and drain inspection.

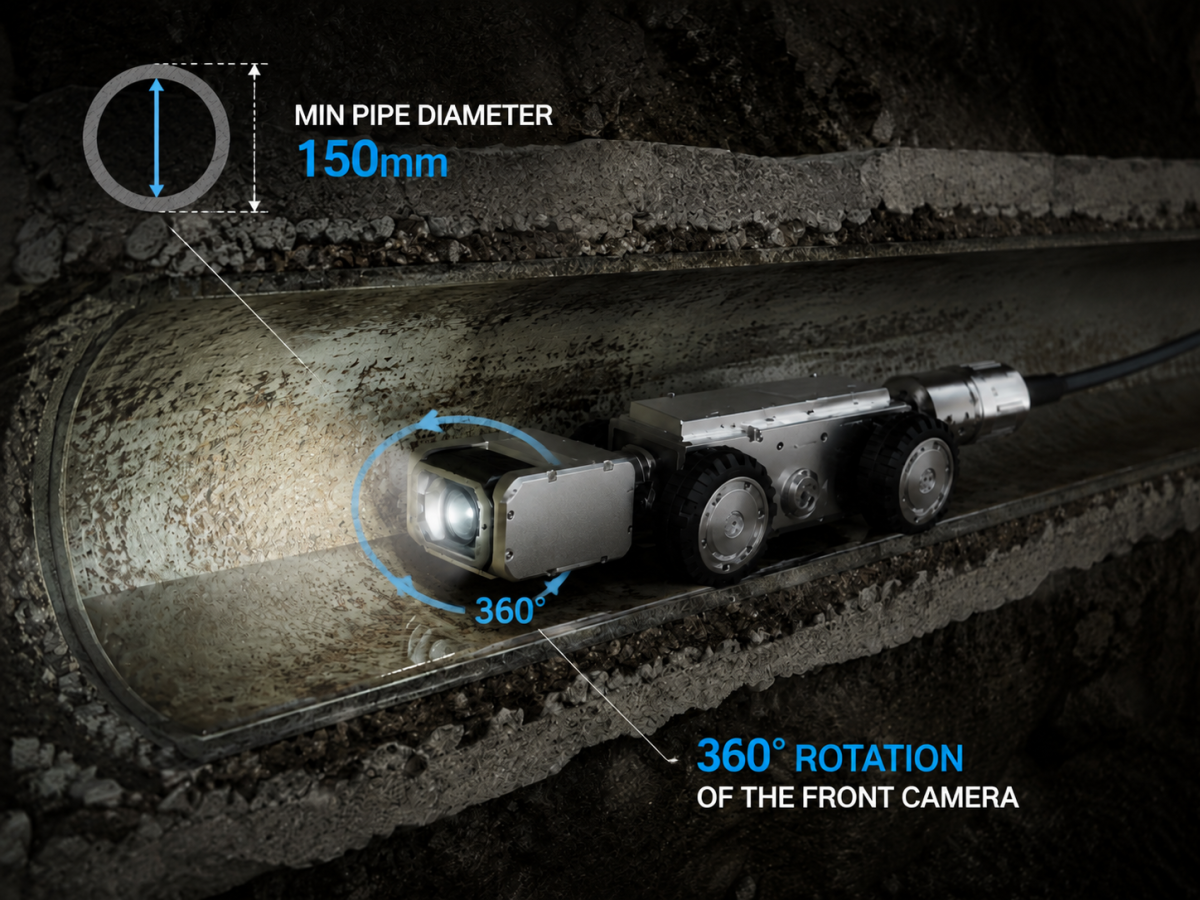

Maximum Reach in Minimum Diameter

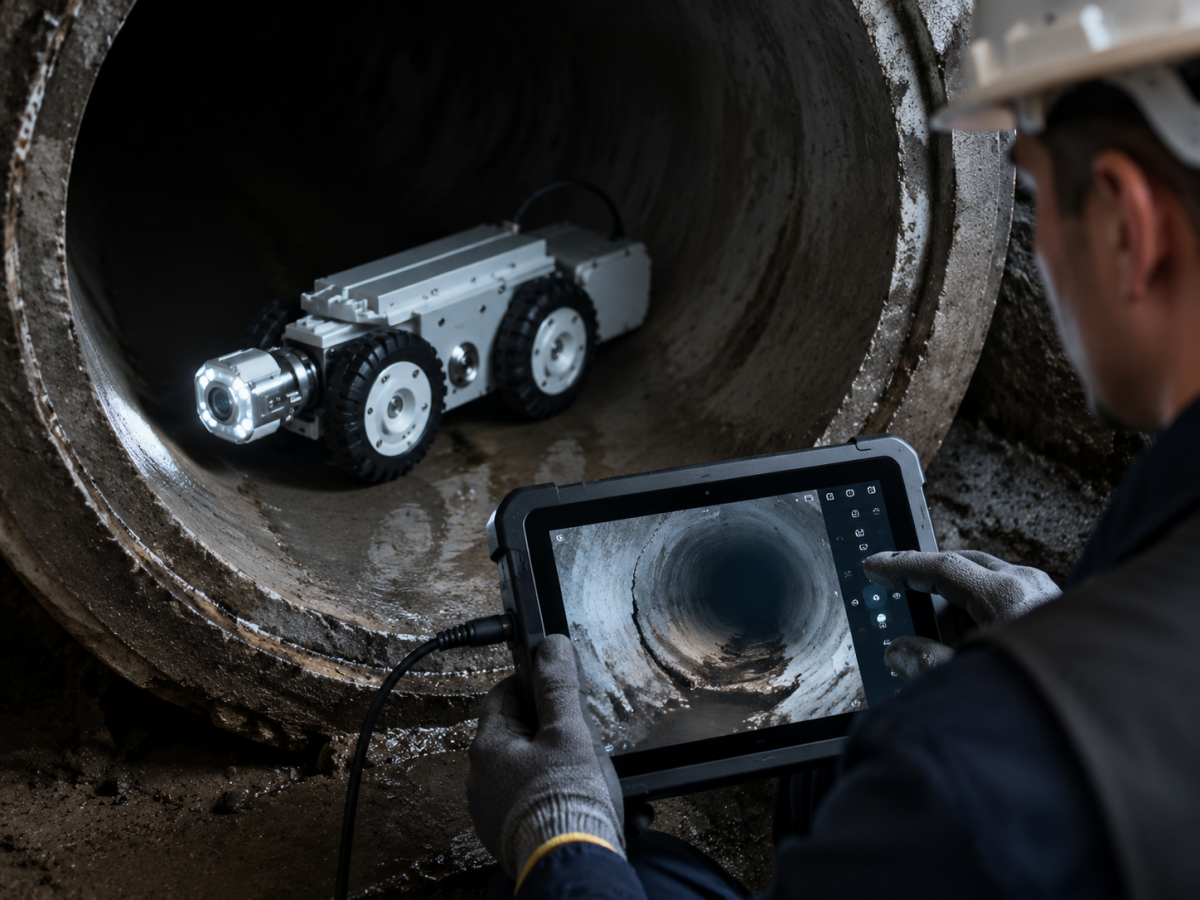

Clear Picture, Clean Workflow

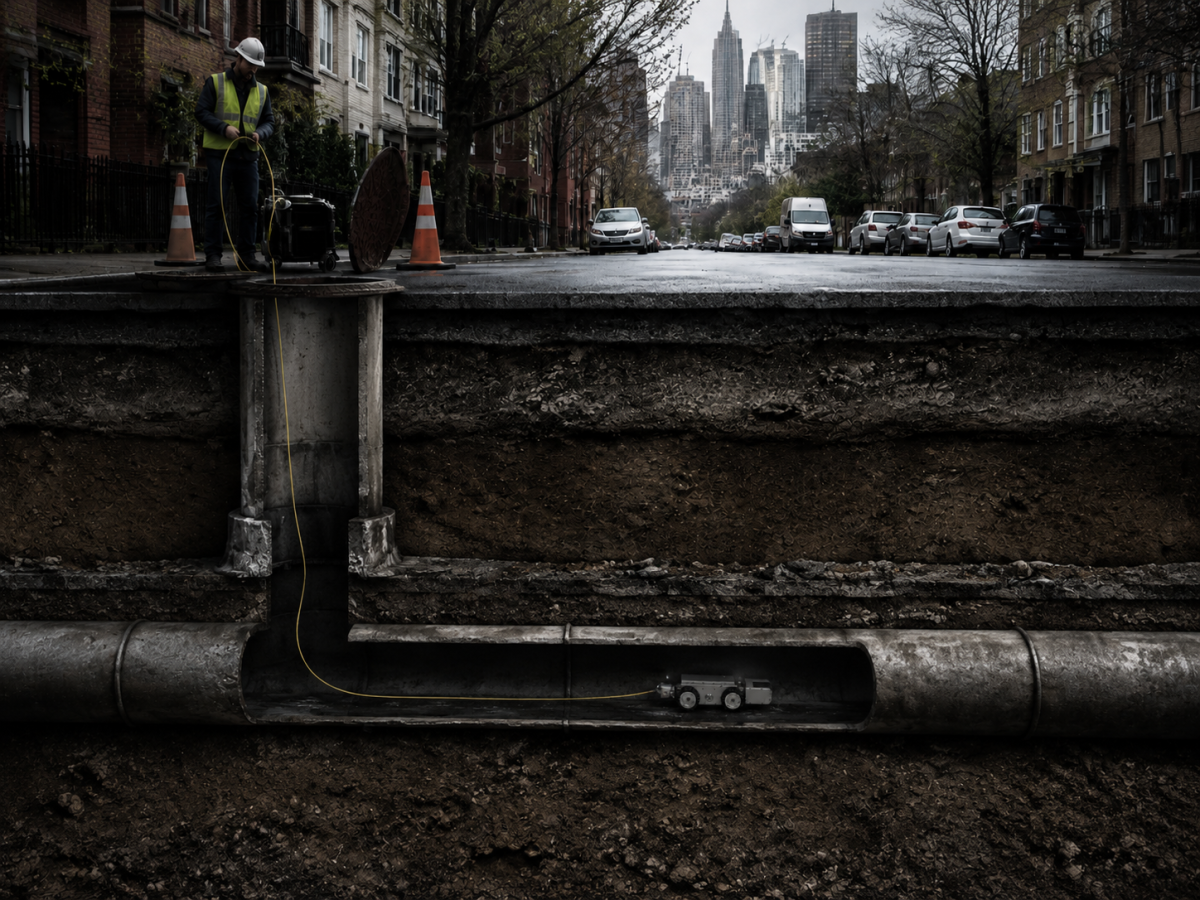

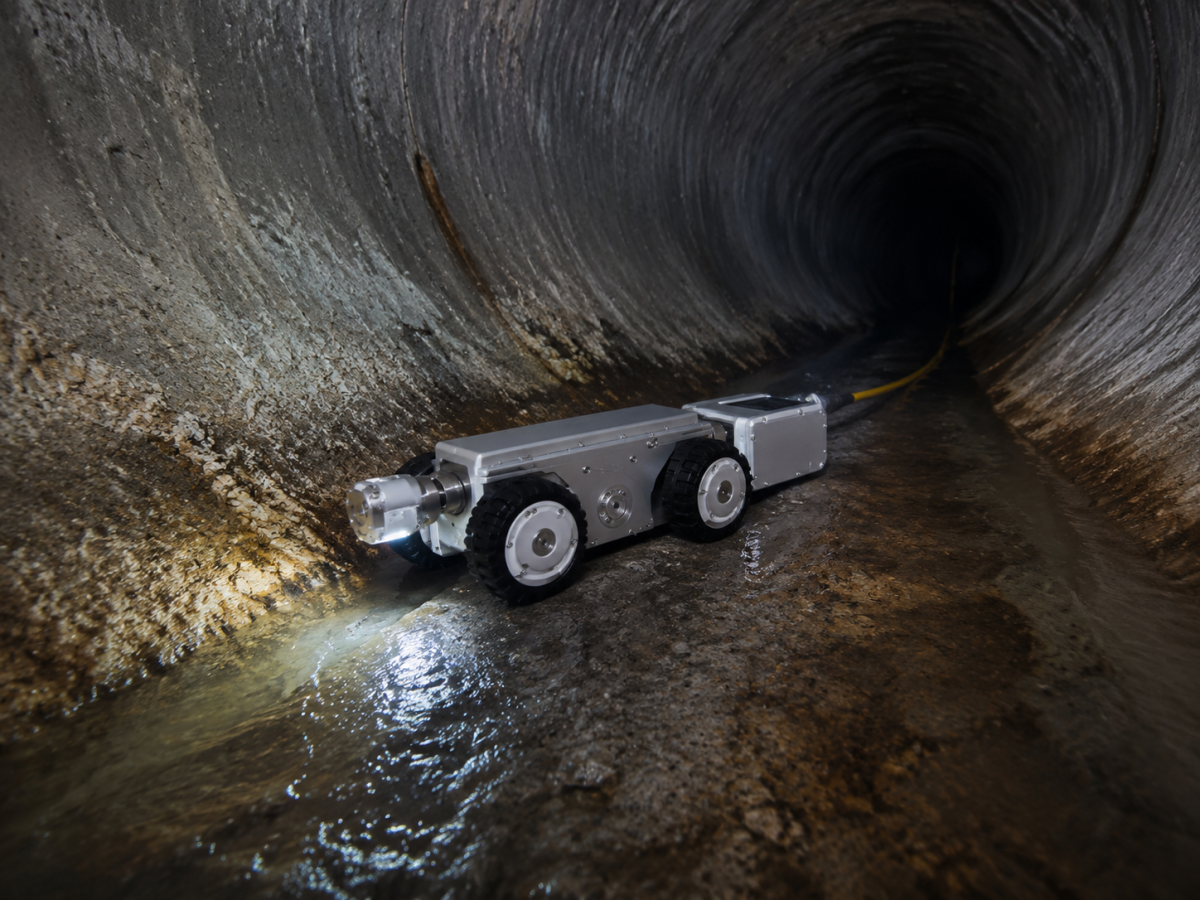

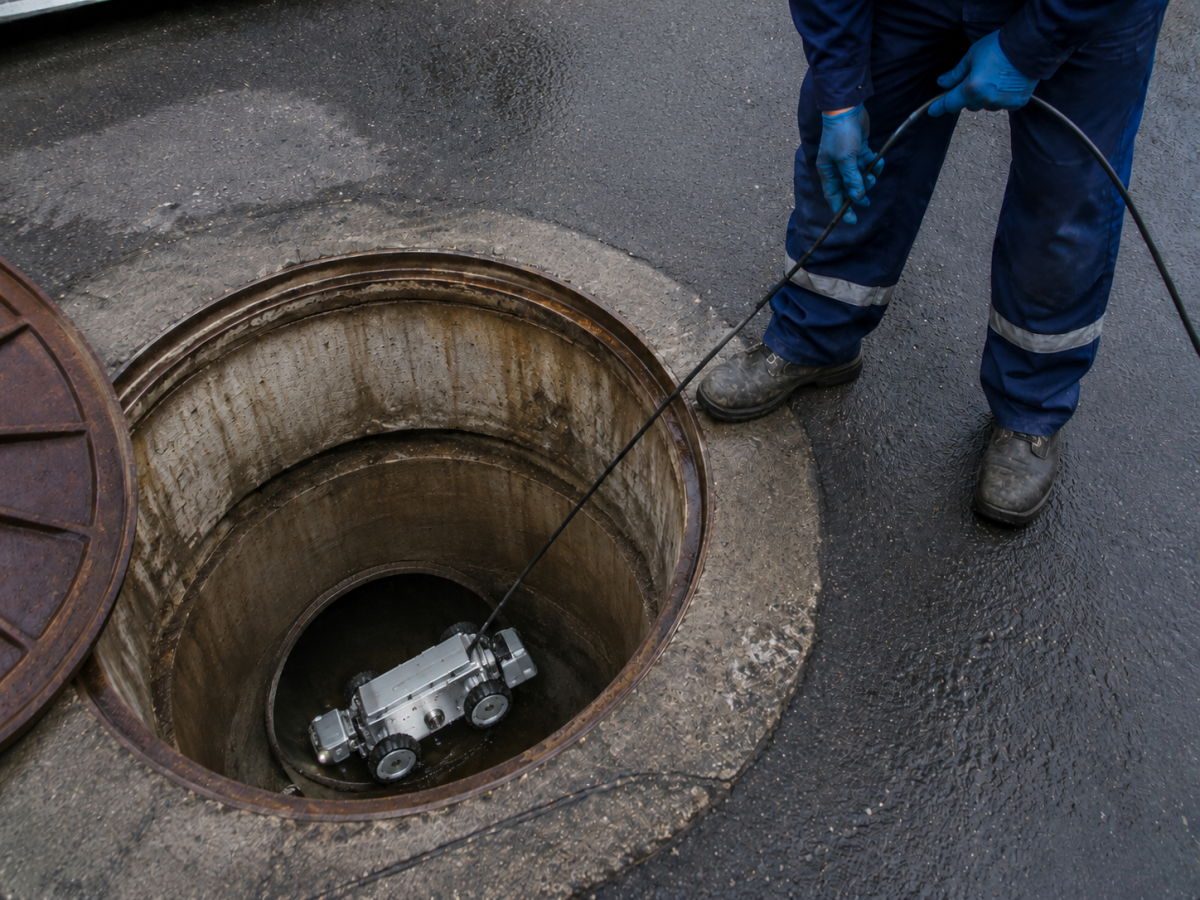

From the Field
Built for the pipes you actually work in.
The PIPESOLV K22-C on the invert, at the manhole and under the surface — engineered from real field conditions, not brochures.
Built for the Pipes You Survey.
Four reasons the PIPESOLV K22-C earns its place in the main — long reach, live 4K eyes, real climbing grip and a sealed chassis for wet lines.

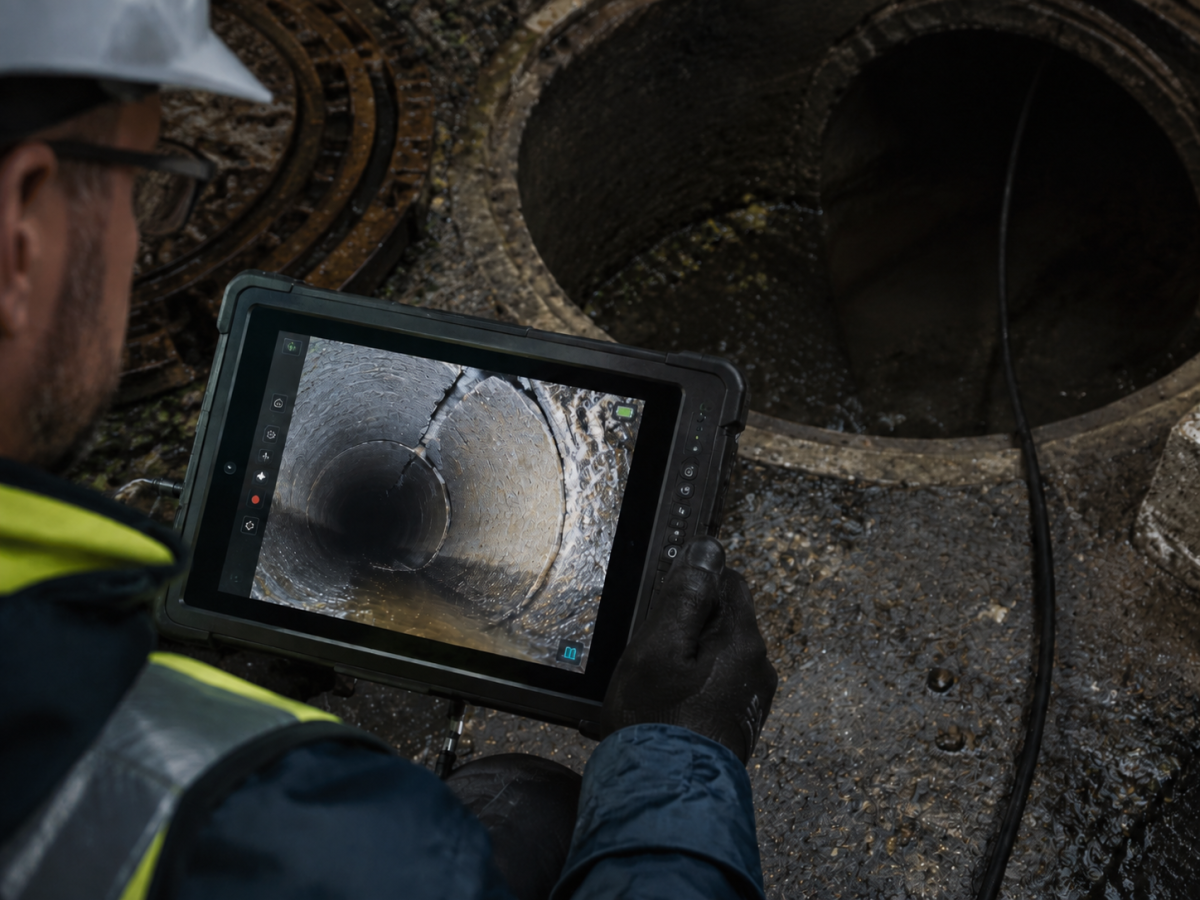

Tablet Wireless Control
High-definition touchscreen tablet with wireless remote operation - drive, hover and view pipeline conditions live from the surface.
2MP HD Camera
1080P real-time video with LED fill lights - tiny cracks and rust spots stay visible in dark, deep-buried or murky pipes.

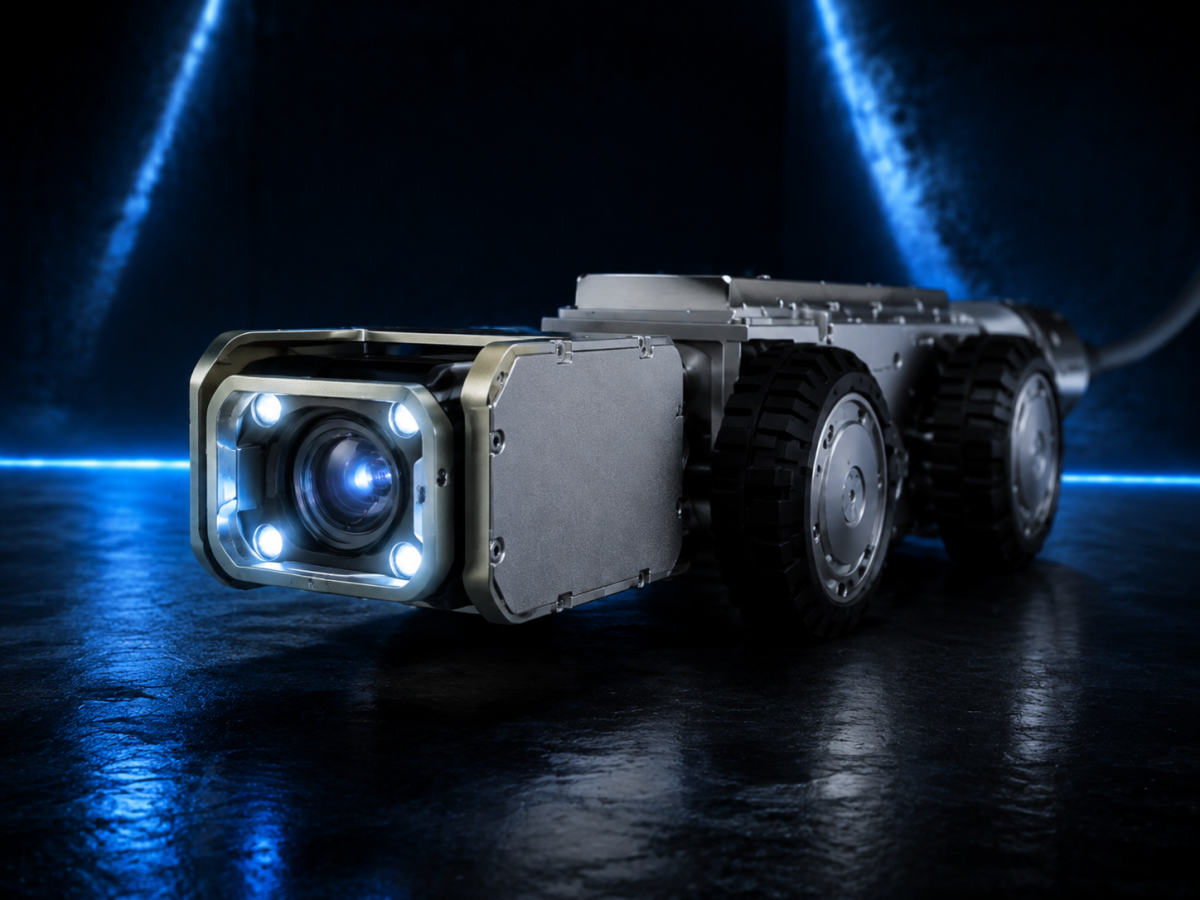

360° Intelligent Camera
Camera rotates 360° horizontally with one-touch lift - full pipe circumference coverage with no blind spots.
IP68 Waterproof Rating
Operates submerged in high groundwater storm drains and long-term waterlogged sewers with stable performance.
One-Click Recording & Screenshots
Real-time recording for traceable moments plus one-click screenshots that pinpoint cracks, leaks and defects.
One-Click Inspection Report
Videos, screenshots, inspection time and location compile automatically into a standardized report with defect descriptions and risk ratings.
The Numbers That Matter.
Every specification is validated against real sewer and water-main conditions — reach, speed, grade and cable sized for utility fieldwork.
| Diameter | DN150 - DN2000 |
| Applications | Municipal sewage / stormwater / industrial effluent / utility tunnels |
| Entry | No excavation required |
| Resolution | 2MP HD (1080P live video) |
| Rotation | 360° horizontal |
| Lift | One-touch height adjustment |
| Lighting | LED fill lights |
| Drive system | Dual-motor six-drive |
| Waterproof | IP68 |
| Control | Tablet wireless remote |
| Work distance | 120 m |
| Recording | Real-time + one-click screenshot |
| Report | One-click standardized report with defect & risk ratings |
| Defects detected | 8 major types incl. cracks, corrosion, root intrusion, leaks |
Everything the PIPESOLV K22-C Needs to Stay in the Field.
Compatible spares and upgrades to keep the crawler running at full performance — order with the PIPESOLV K22-C or later, as wear requires.
Control Tablet
Wireless remote operation with live HD video, drive, camera and report controls.
10-inch / wireless
Cable Winch & Reel
Powered drum with slip ring for the armoured cable - set and hold tension from the surface.
120 m / steel-armoured
Camera Lens Kit
Wide-angle and close-up lenses for detailed capture at joints, laterals and defects.
2× lenses / quick-swap
Spare Track Pads
Wearing-part set for abrasive inverts and high-mileage fleets.
4 pads + pins
Built for Every Pipe in Your Network.
The PIPESOLV K22-C climbs, navigates and inspects across the line types found in municipal and industrial networks.
Questions, Answered.
The questions operators ask most about the PIPESOLV K22-C — from line fit to verifying the result.
What pipe sizes does the K22-C fit?
DN150 to DN2000 pipelines - the compact footprint is optimized for small-diameter sewers and narrow access points.
How far can the K22-C travel in one run?
Up to 120 m of continuous inspection per run, with one-click report generation and one-click screenshot / video recording along the way.
Can it operate in flooded or waterlogged pipes?
Yes. The IP68 waterproof rating allows the robot to operate submerged, whether in high groundwater storm drains or long-term waterlogged sewage pipes.
How is the robot controlled?
Wirelessly from a high-definition touchscreen tablet - the operator stays at the surface and drives the robot while watching the live 1080P video feed.
What is the K22-C best suited for?
Small-diameter sewers from DN150 and narrow access points — the compact footprint keeps full 360° inspection quality where space is tightest.
Does the smaller size affect stability?
No. The six-wheel dual-motor drive keeps the same traction as the rest of the series, so the K22-C climbs debris and offsets reliably in smaller lines.
