PIPESOLV K22
Tablet-controlled crawler for large mains
Dual-motor six-drive crawler for sewer, stormwater and utility mains - 360° rotating camera, tablet wireless control and one-click report generation, up to 120 m per run.
The Workhorse for Large Mains
The PIPESOLV K22 is the series workhorse for DN300–2000 sewer, stormwater and utility mains: a dual-motor six-drive crawler with a 360° rotating camera, 120 m of work distance and tablet wireless control — so crews inspect bigger lines without excavation and without entering the pipe.
360° Vision, Zero Blind Spots
The camera head rotates 360° horizontally and lifts in one touch, so the crown, the invert and every joint in between are captured from a single position. LED fill lights keep cracks, rust and joint displacement visible in deep, dark or murky lines.
Tablet Wireless Control
The operator drives from a high-definition touchscreen tablet at street level — no entry, no crouching, no cable handling in the flow. The live 1080P feed and drive controls sit in one hand.
120 m Per Run
One cable, one run: up to 120 m of continuous inspection before resetting, with one-click screenshots and video captured along the way.
IP68 for the Wet Lines
A fully sealed IP68 chassis keeps the K22 working submerged in high-groundwater storm drains and long-term waterlogged sewers.
Making pipeline inspection simpler and smarter.
Working the Line, End to End.
The PIPESOLV K22 through the pipe — drive, camera and control in the real world of sewer and drain inspection.

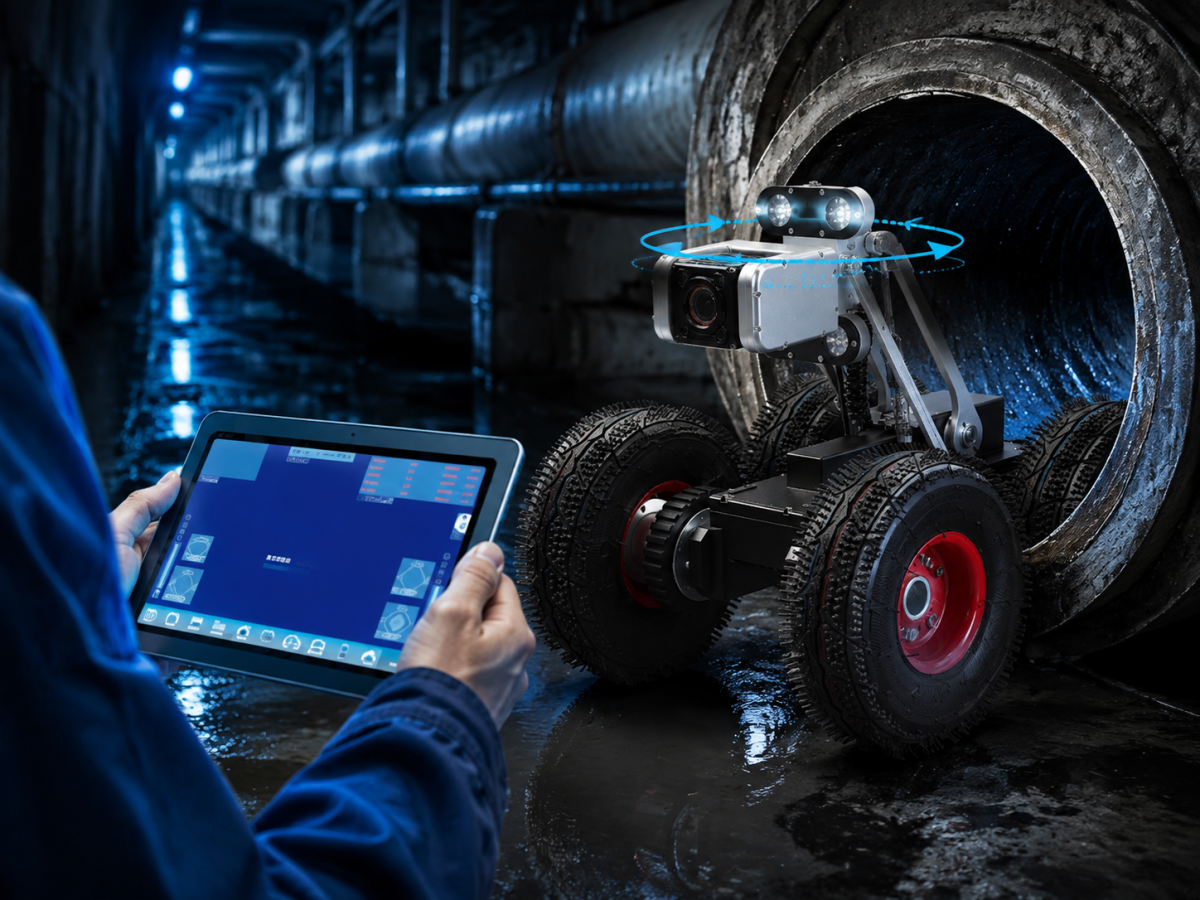

Wireless Control, Room to Work

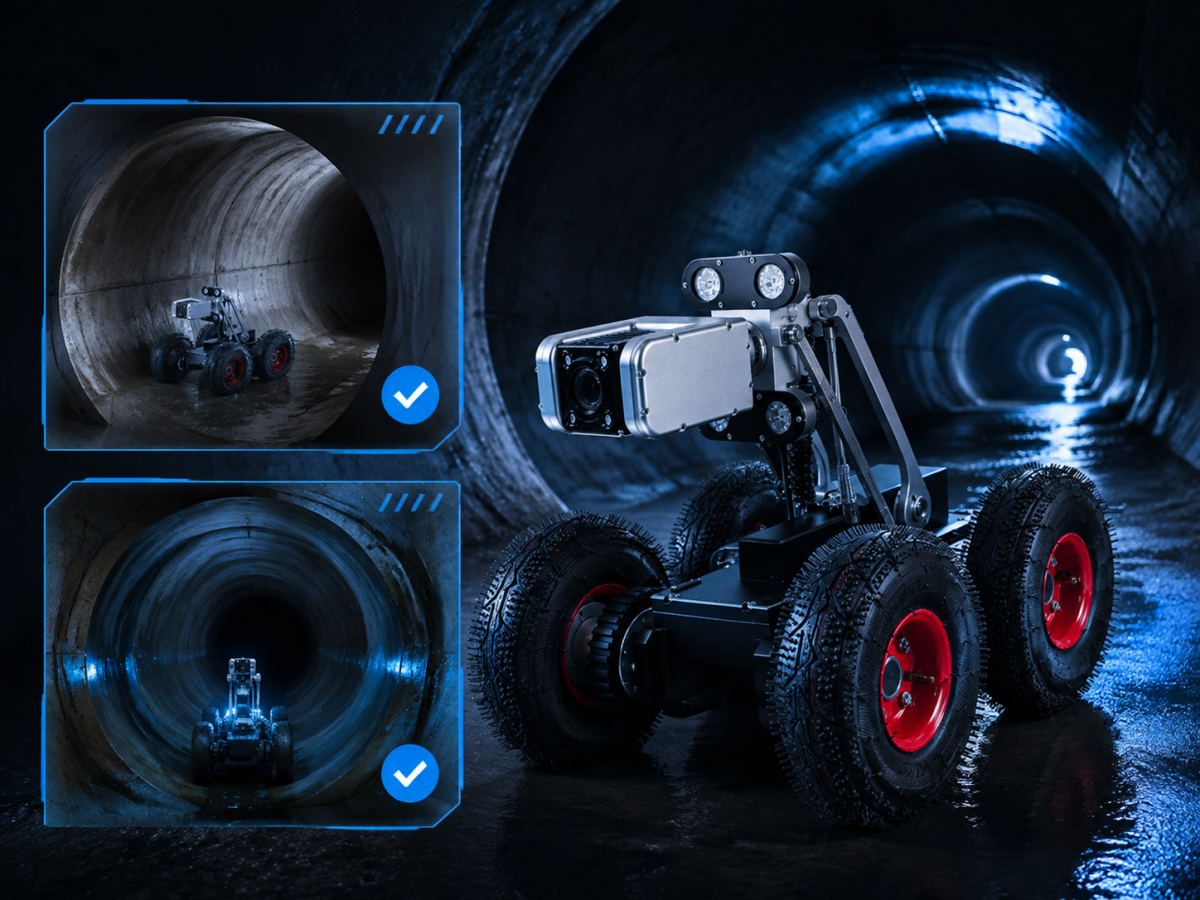

Built for Bigger Diameters

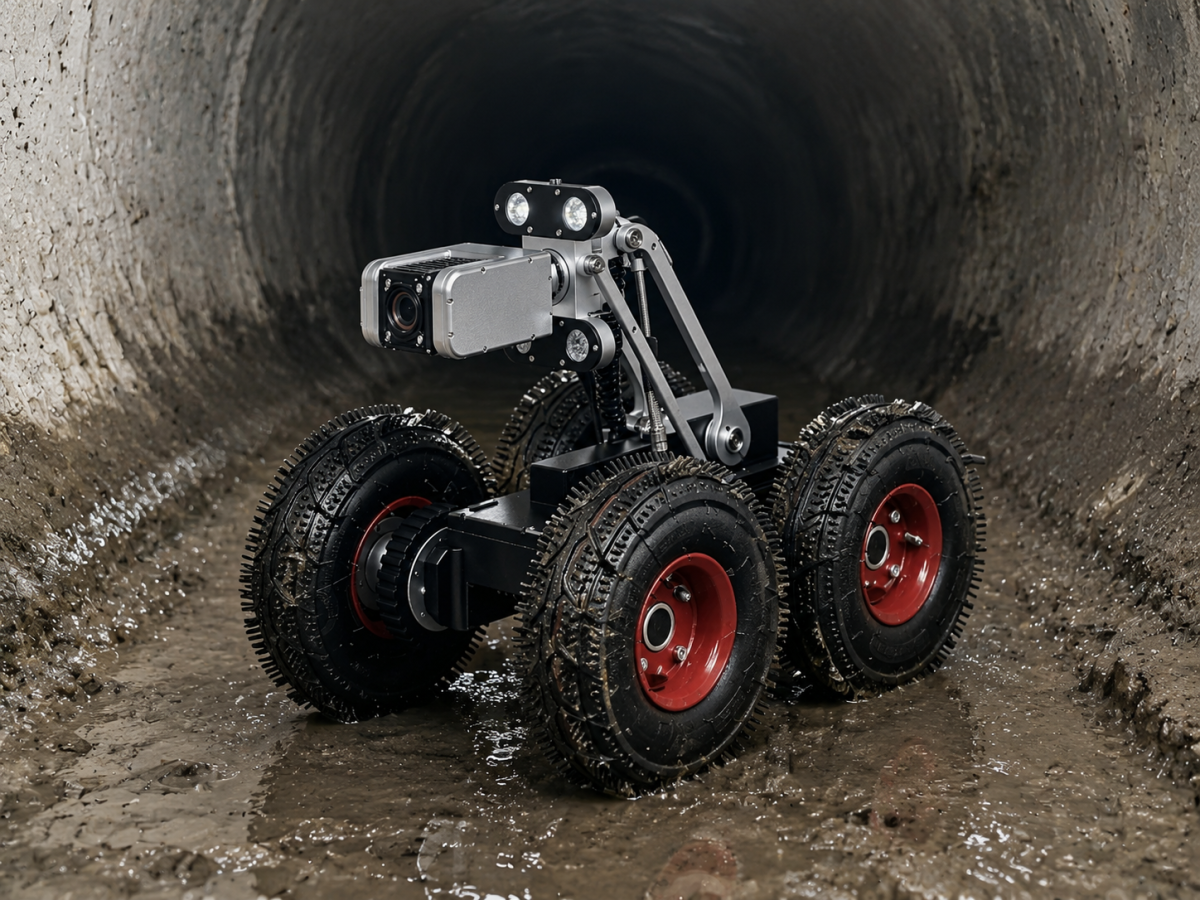

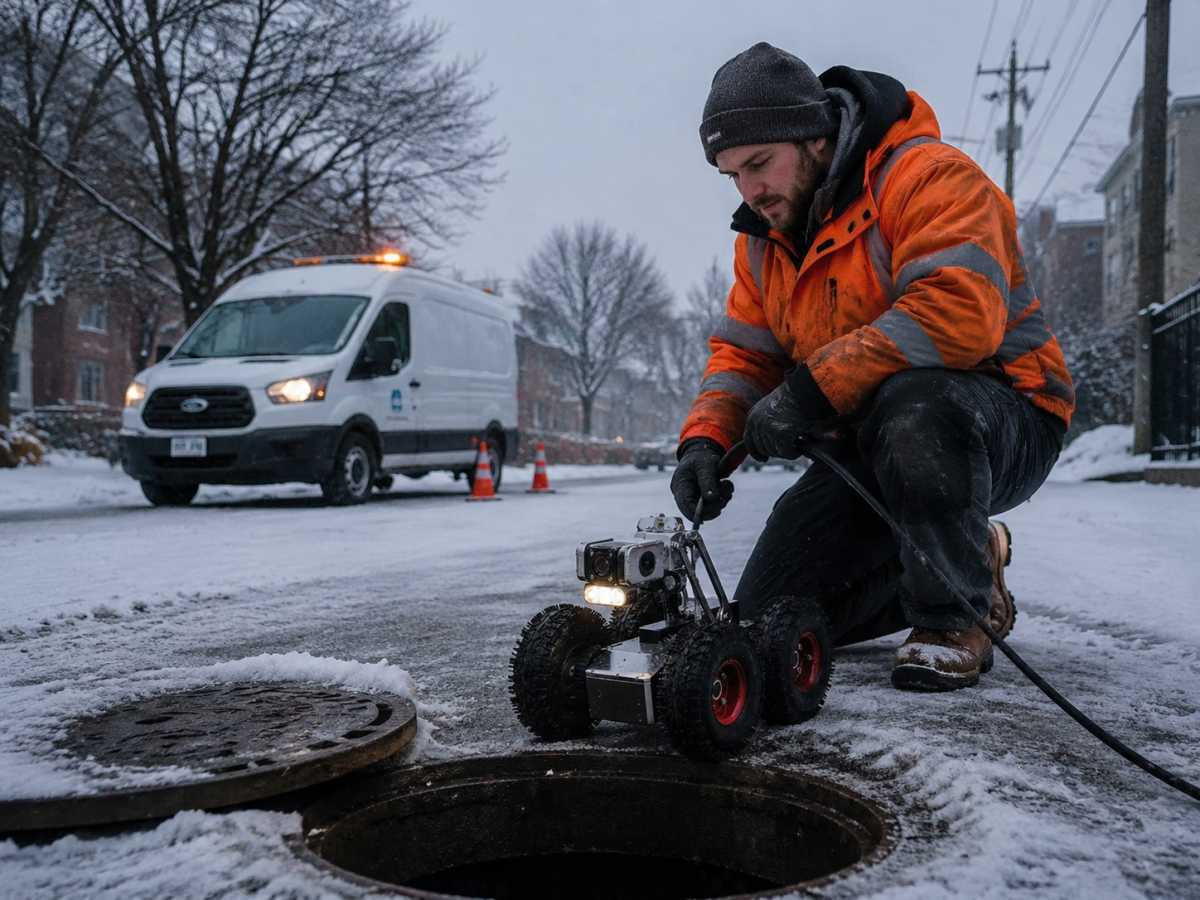

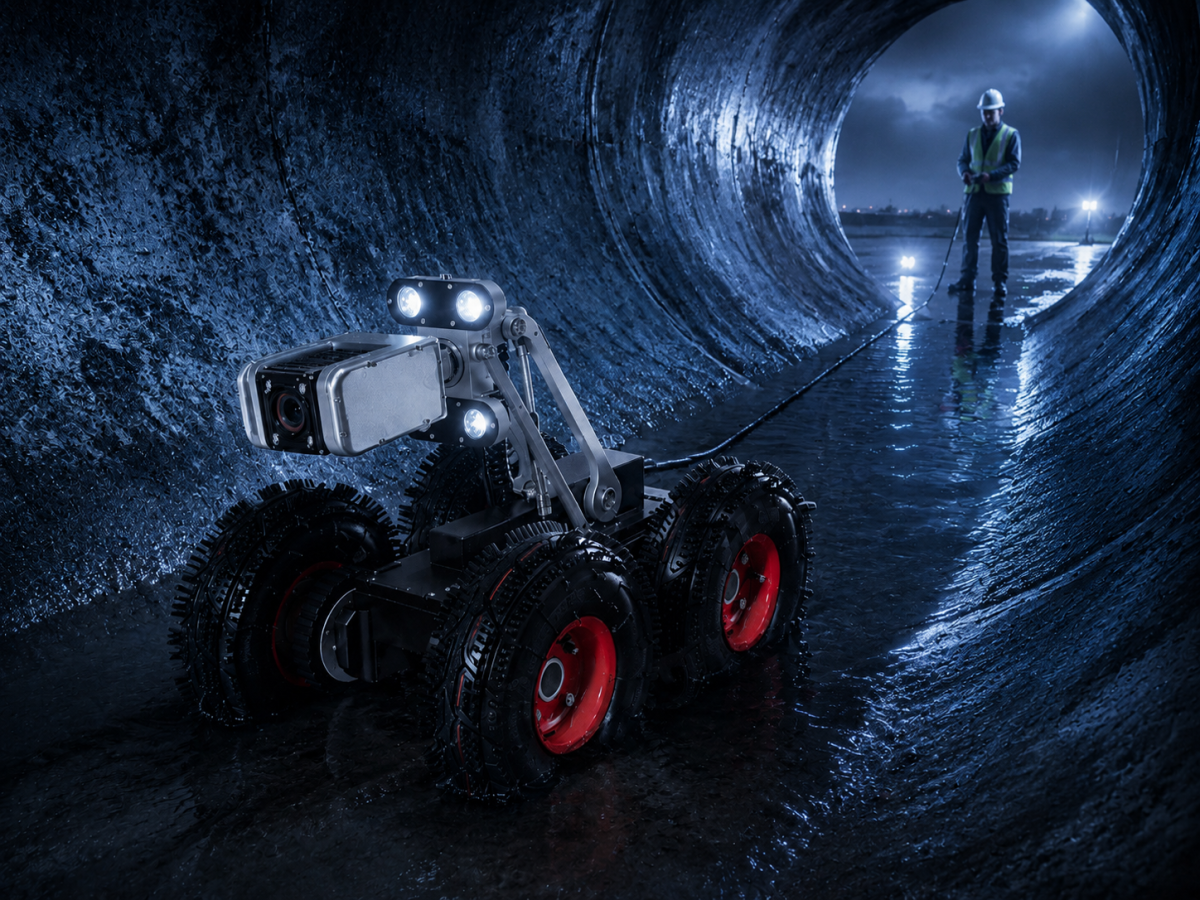

From the Field
Built for the pipes you actually work in.
The PIPESOLV K22 on the invert, at the manhole and under the surface — engineered from real field conditions, not brochures.
Built for the Pipes You Survey.
Four reasons the PIPESOLV K22 earns its place in the main — long reach, live 4K eyes, real climbing grip and a sealed chassis for wet lines.

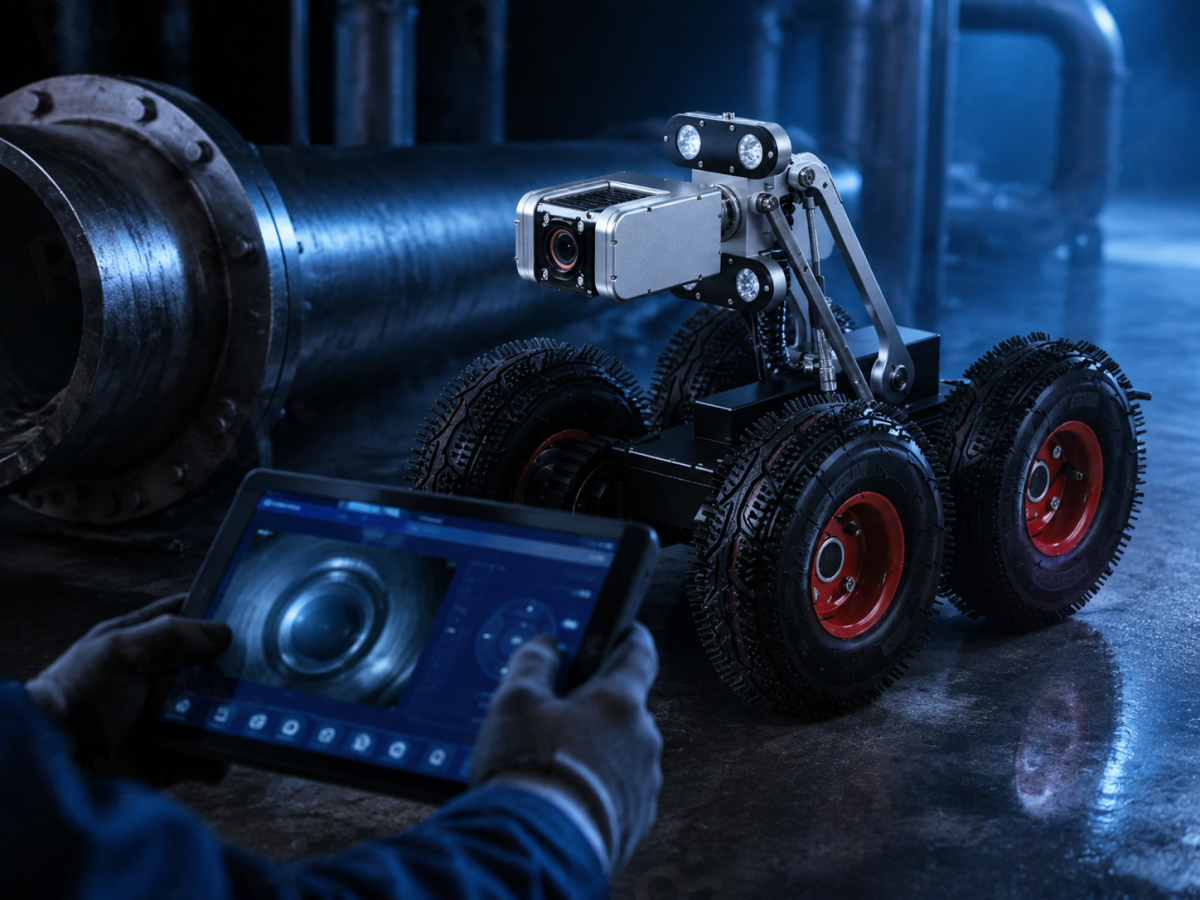

Tablet Wireless Control
High-definition touchscreen tablet with wireless remote operation - drive, hover and view pipeline conditions live from the surface.
2MP HD Camera
1080P real-time video with LED fill lights - tiny cracks and rust spots stay visible in dark, deep-buried or murky pipes.

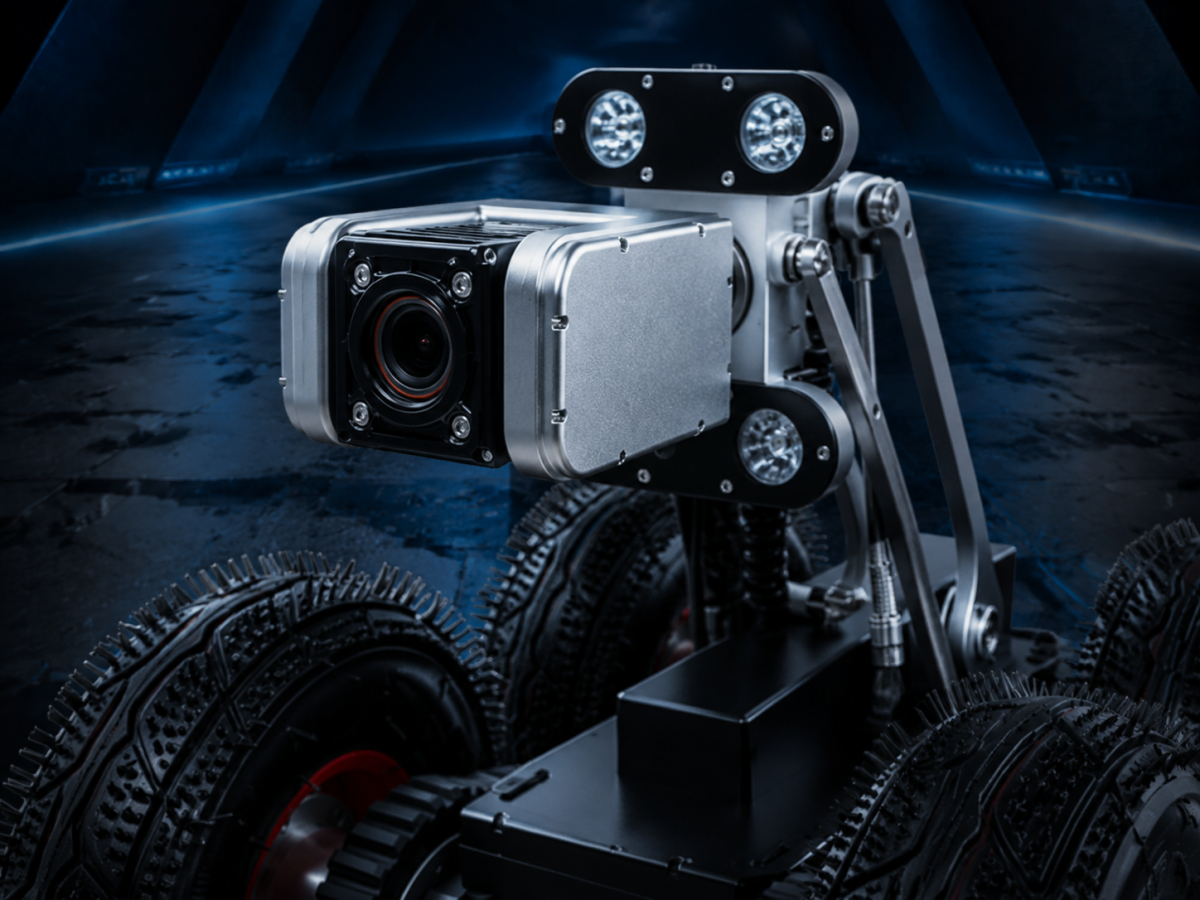

360° Intelligent Camera
Camera rotates 360° horizontally with one-touch lift - full pipe circumference coverage with no blind spots.
IP68 Waterproof Rating
Operates submerged in high groundwater storm drains and long-term waterlogged sewers with stable performance.
One-Click Recording & Screenshots
Real-time recording for traceable moments plus one-click screenshots that pinpoint cracks, leaks and defects.
One-Click Inspection Report
Videos, screenshots, inspection time and location compile automatically into a standardized report with defect descriptions and risk ratings.
The Numbers That Matter.
Every specification is validated against real sewer and water-main conditions — reach, speed, grade and cable sized for utility fieldwork.
| Diameter | DN300 - DN2000 |
| Applications | Municipal sewage / stormwater / industrial effluent / utility tunnels |
| Entry | No excavation required |
| Resolution | 2MP HD (1080P live video) |
| Rotation | 360° horizontal |
| Lift | One-touch height adjustment |
| Lighting | LED fill lights |
| Drive system | Dual-motor six-drive |
| Waterproof | IP68 |
| Control | Tablet wireless remote |
| Work distance | 120 m |
| Recording | Real-time + one-click screenshot |
| Report | One-click standardized report with defect & risk ratings |
| Defects detected | 8 major types incl. cracks, corrosion, root intrusion, leaks |

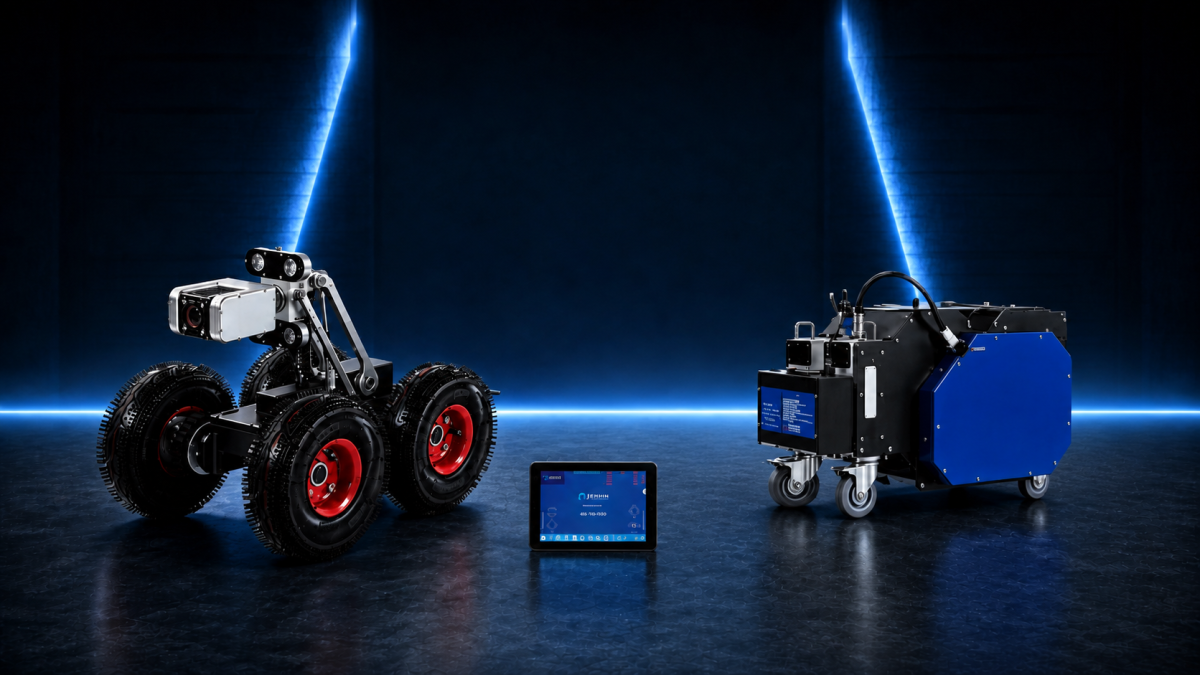

Everything the PIPESOLV K22 Needs to Stay in the Field.
Compatible spares and upgrades to keep the crawler running at full performance — order with the PIPESOLV K22 or later, as wear requires.
Control Tablet
Wireless remote operation with live HD video, drive, camera and report controls.
10-inch / wireless
Cable Winch & Reel
Powered drum with slip ring for the armoured cable - set and hold tension from the surface.
120 m / steel-armoured
Camera Lens Kit
Wide-angle and close-up lenses for detailed capture at joints, laterals and defects.
2× lenses / quick-swap
Spare Track Pads
Wearing-part set for abrasive inverts and high-mileage fleets.
4 pads + pins
Built for Every Pipe in Your Network.
The PIPESOLV K22 climbs, navigates and inspects across the line types found in municipal and industrial networks.
Questions, Answered.
The questions operators ask most about the PIPESOLV K22 — from line fit to verifying the result.
What is the difference between K22 and the other inspection robots?
The main functions are the same across the series; the key difference is the applicable pipe diameter. K22 covers DN300-2000, K22-B covers DN190-2000 and K22-C covers DN150-2000. K18 and K20 share the same range as K22.
How far can the K22 travel in one run?
Up to 120 m of continuous inspection per run, with one-click report generation and one-click screenshot / video recording along the way.
Can it operate in flooded or waterlogged pipes?
Yes. The IP68 waterproof rating allows the robot to operate submerged, whether in high groundwater storm drains or long-term waterlogged sewage pipes.
How is the robot controlled?
Wirelessly from a high-definition touchscreen tablet - the operator stays at the surface and drives the robot while watching the live 1080P video feed.
How long does a full K22 survey take to set up?
Most crews are inspecting within ten minutes of arrival — the crawler, reel and tablet deploy from a single vehicle, with no trenching and no flow diversion required.
Can the K22 camera reach the crown of a large main?
Yes. The camera head lifts and rotates 360° from the tablet, so crown defects, roof corrosion and joint displacement are all visible without repositioning the crawler.
